Elegant

Steel Fence

Our Steel Board Fence is the only post and rail board fence made of steel. It has the aesthetic appeal of traditional wood fencing but is vastly stronger and more durable.

The steel fence is two-sided zinc galvanized and powder-coated with architectural grade powder coating in combination with a zinc phosphate conversion coating for superior paint adhesion and rust protection.

Depending on rail count needed and a few other factors we are currently at $23-$32 per linear foot. That is for materials, including all post and caps etc. If you are installing more than 3500 linear feet additional discounts on price and shipping will be applied. Calculate your estimate below.

CALCULATE ESTIMATE
Long lasting

Steel Board Fence

The lifetime expectancy of our Steel Board Fence is decades, and the lifetime maintenance costs are virtually zero. The protective powder coating will not chip, peel or crack and has superior long-term resistance to rusting, fading, or chalking—making this the most durable horse fencing on the planet.

Since our fence is made of steel and not welded, posts remain straight and perfectly aligned no matter the temperature. Unlike wood or vinyl, the horse rail fences will not warp or sag over time, nor will they be destroyed from cribbing.

4-Rail White Fence
Cleverly
Designed

Equestrian Fencing

Rails are simply inserted into pre-punched openings on the rails, fitted with unique rubber grommets. These grommets protect the board’s surface and allow you create any angle, whether you’re looking for laser straight lines or elegant curves.

During installation, a lock spacer is dropped inside each post to engage the rails and eliminate the need for nails or screws, saving valuable time and big hassles.

LEARN MORE ABOUT INSTALL
Designed for
Horse Safety

Horse Rail Fence

Our Steel Board Fence is highly visible with rounded smooth edges and no nails, screws, or fasteners. The length of the rails allows them to flex for improved horse safety and the steel rod reinforcements enhance strength in the case of larger livestock. When the rails are pushed or impacted, they will cushion the horse and spring back to a perfectly straight line.

In the case of a stampeding and panicked horse, its energy is sufficient to cause the rails to bend, buckle, and release from the posts with no breakage or splinters. This prevents serious injury to the horse, unlike with wood, vinyl, welded steel, or masonry-style systems.

STANDARD STYLES

We offer a range of standard styles to suit various landscapes and personal preferences. Whether you’re looking for the classic charm of a 3-rail white horse fence or the bold sophistication of a 4-rail black horse fence, our Steel Board Fence delivers. Each style combines timeless aesthetics with our innovative steel construction, ensuring your property stands out while providing unmatched safety and durability for your equine companions. Choose from our popular options to find the perfect balance of form and function for your farm, ranch, or equestrian center.

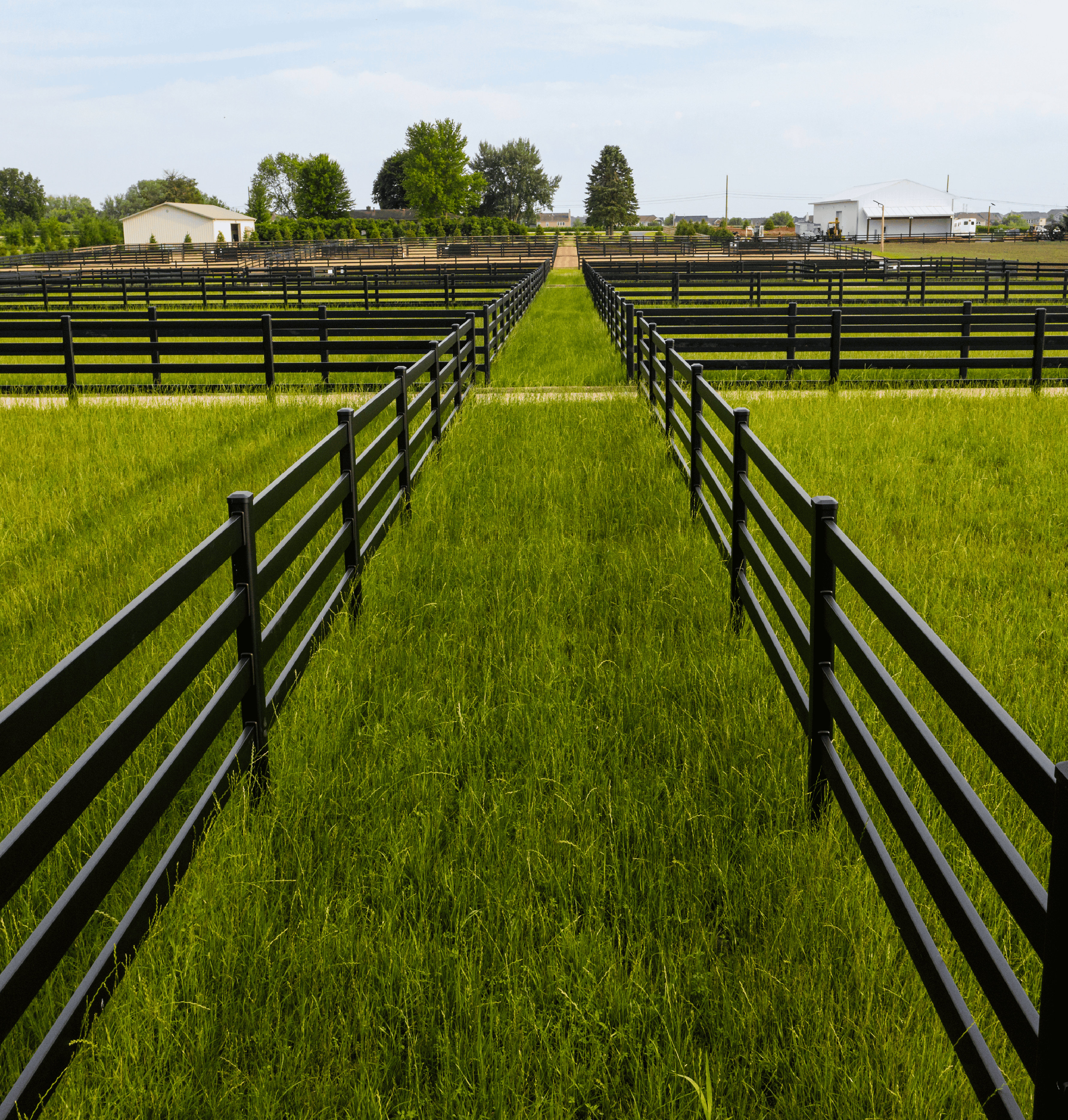

4-Rail Black Horse Fence

3-Rail Black Horse Fence

4-Rail White Horse Fence

3-Rail White Horse Fence

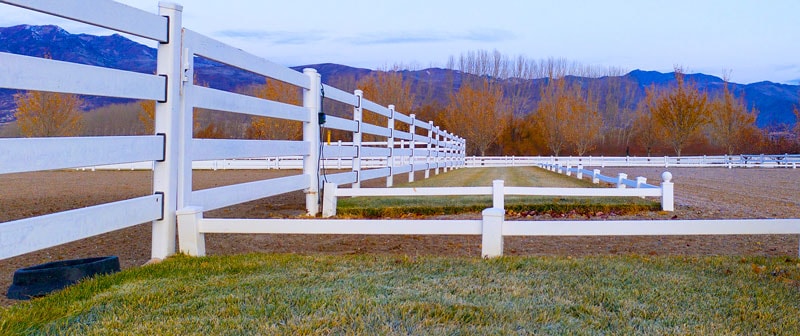

Choosing a Fence Color

For a detailed look at the differences between our colors, please watch the video below.

Steel Board Fence Specifications

Post Length and Dimensions
100" (8 feet 4 inches), 3-1/2" x 5-1/8"
Post Height Installed
57" (4 feet 9 inches)
Post Strength
1200 lbs. horizontal (at top rail)
Rail Length and Dimensions
114" (9-1/2 feet), 1-3/8" x 5-1/8"
Rail Strength
400 lbs. horizontal, 700 lbs. reinforced, 1200 lbs. vertical
Top Rail Height Installed
54" (4-1/2 feet)
Post Centers
115 3/4" (9 feet 7-3/4 inches)

Metal Fence Installation

Watch a complete installation overview in the below video to learn how to install the steel fence rails. For more visual and written horse rail fence installation instructions, dimensions and layouts, visit our Installation PageClick here for our 3 Rail layout and click here for 4 rail.

Current Pricing

Small Project
Fence Pricing
Less than 4000 ft of 3 rail
3 Rail
$23.14/ft
Less than 3500 ft of 4 rail
4 Rail
$28.15/ft
Large Project
Fence Pricing
Greater than 4000 ft of 3 rail
3 Rail
$22.25/ft
Greater than 3500 ft of 4 rail
4 Rail
$27.06/ft

GET A QUOTE

Send a copy of your layout to us at sales@buckleyfence.com or call us at 877-306-4024 and we will provide a quote!
